發布時間: 2019-05-18

名稱：無線路由器底殼

材質：防火ABS

產品重量：62g

產品腔數：1*1

產品壁厚：2.3mm

熱流道系統：一出四針閥嘴系統

產品要求：

1：產品有黑色和白色兩種顏色，熱流道需要滿足快速換色的要求。

1: The product has two colors: black and white. The hot runner needs to meet the requirement of fast color change.

2：進膠口位置要求平整無披鋒。

2: The position of the rubber inlet should be flat and without a cape.

3：時序控制進膠，可調整產品夾線位置。

3: Timing control glueclate feeding, adjustable product clamping position.

4：產品有嚴格的變形要求。

4: The product has wases strict deformation requirements.

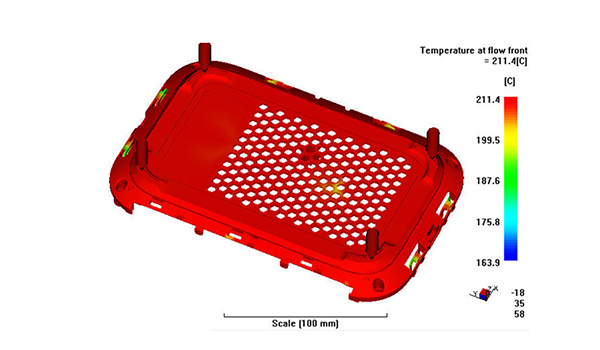

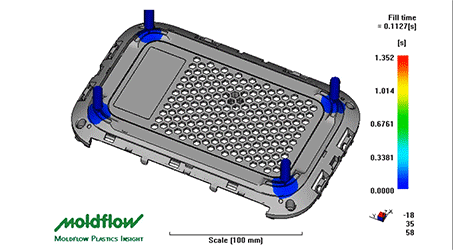

模流分析：Modal flow analysis:

針閥式熱流道的優勢：

1.在制品上不會留下進澆口殘痕，進澆口處痕跡平滑；能使較大的澆口快速填充，減小產品變形。

1. There will be no residual entrance on the products, and the trace at the entrance is smooth. It can make the larger gate fill quickly and reduce the deformation of the products.

2.當注塑機螺桿后退時，可有效地防止從模腔中反吸物料；能配合順序控制儀減少制品熔接痕。

2. When the screw of injection moulding machine retreats, it can effectively prevent material from being sucked back from the mould cavity, and can cooperate with sequential controller to reduce the weld marks of products.
